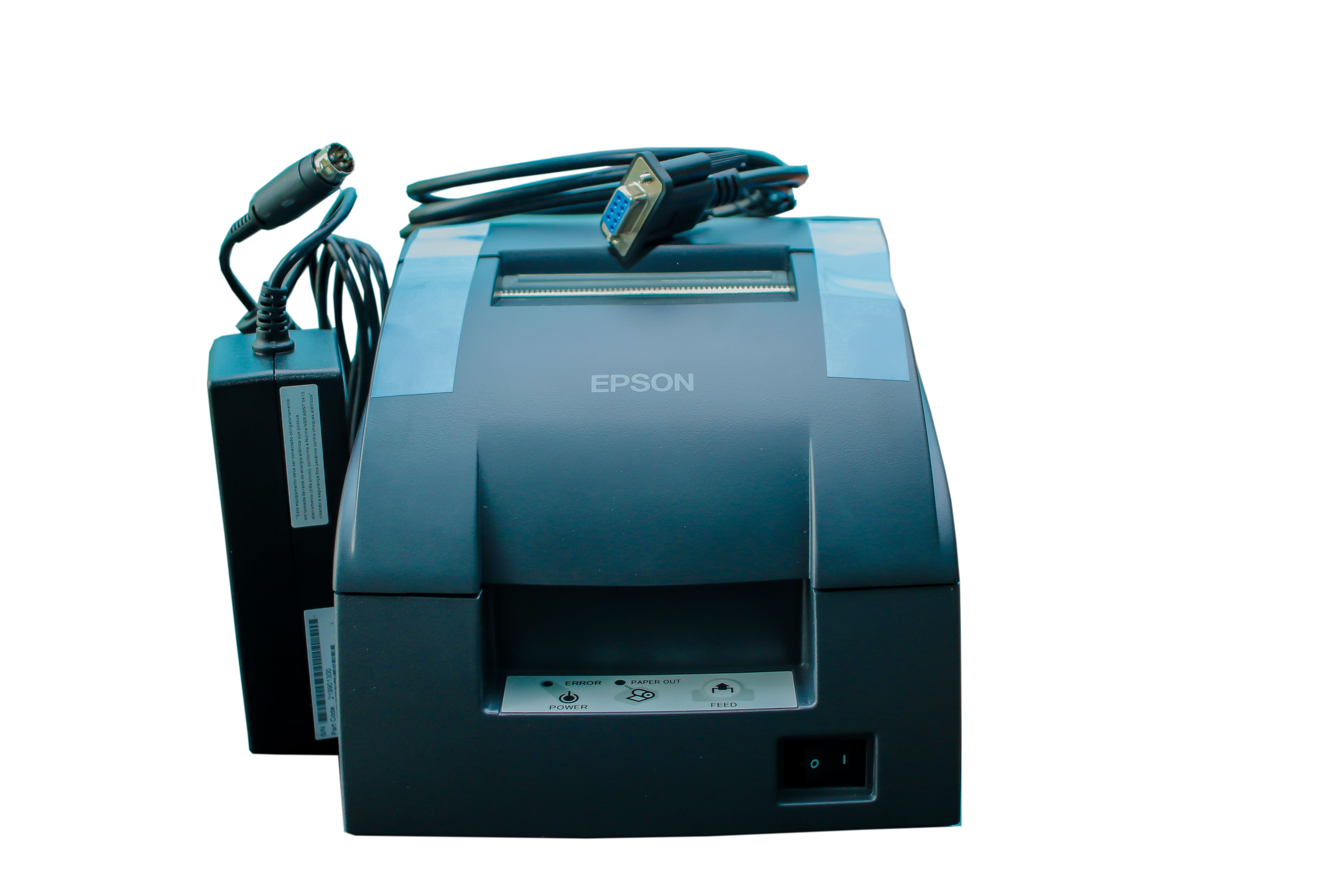

Epson TM-U220B POS Receipt Printer

The TM-U220 is a robust, high performance impact receipt printer which is exceptionally easy to use. Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220 is very reliable and prints on plain paper in three widths.

Features

  • High print speed

    High print speed

    Print speeds up to 4.6 lines-per-second

  • Drop-in paper load

    Drop-in paper load

    A feature introduced for the first time to Epson impact dot matrix receipt printers, which allows effortless changing of paper rolls

  • Features daughter board connectivity option

    Features daughter board connectivity option

    Gives you access now or in the future to Epson's range of interfaces, including serial, parallel, USB, Ethernet and wireless 802.11b

  • Wall mounting option

    Wall mounting option

    Allows the Epson TM-U220 to be mounted on the wall, ideal for hospitality applications.

  • Other features

    Other features

    Other features include a paper end detector that automatically alerts the user when the printer is out of paper, an automatic cutter and the ability to print one original plus two copies.

Technical Specification

PRINT METHOD
9-pin, serial impact dot matrix
PRINT FONT
7 x 9 / 9 x 9
COLUMN CAPACITY
40 or 42 columns / 33 or 35 columns
CHARACTER SIZE
1.2(W) x 3.1 (H) mm / 1.6 (W) x 3.1 (H) mm
CHARACTER SET
95 Alphanumeric characters, 37 International characters, 128 x 12 Graphic characters
Traditional / Simplified Chinese, Thai, Japanese, Korean
PRINT SPEED
Approx. 4.7 LPS (40 columns, 16CPI) / Approx. 6 LPS (30 columns, 16 CPI)
DATA BUFFER
4 KB or 40 bytes
INTERFACE
RS-232C, Bi-directional parallel, Dealer Option: USB, 10 Base-T
PAPER DIMENSIONS
57.5 + 0.5, 69.5 + 0.5, 76mm 0.5mm x dia. 83.0mm (roll)
PAPER THICKNESS
0.06 to 0.085mm
COPY CAPABILITY
One original and one copy
INKED RIBBON
ERC-38 (black, black and red)
RIBBON LIFE
Black: 3 x 106 characters
B/R: 15 x 105 characters (black) 75 x 104 characters (red)
POWER SUPPLY
AC adapter (included)
POWER CONSUMPTION
Approx. 31 W average
D.K.D. FUNCTION
2 drivers
